EasyIO FW-28 Controller

28-POINT, IP CONTROLLER

The FW (WiFi) series has the latest IT network and security standards and WiFi b/g/n. This series can be used as part of an existing network or as an isolated BMS network with WiFi. The dual Ethernet port allows for daisy chain capability within the recommended IT standards.

Features HTML5-ready dashboards
EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series
Built-in dashboard

EasyIO FW-8 WiFi Controller

Product overview

The FW series supports BACnet IP client/server, BACnet MSTP client/server, and Modbus TCP/ RTU M/S, as well as Sox, TCOM, P2P and MQTT. The FW series also features HTML5-ready dashboards and can be programmed live via CPT.

The FW-28 includes 16 UI (voltage and resistance), 4 AO (Voltage) and 8 DO with 24VAC contact relays. For floating control, add the optional FR-02 module. Input point capacity can be expanded using the FD20i.

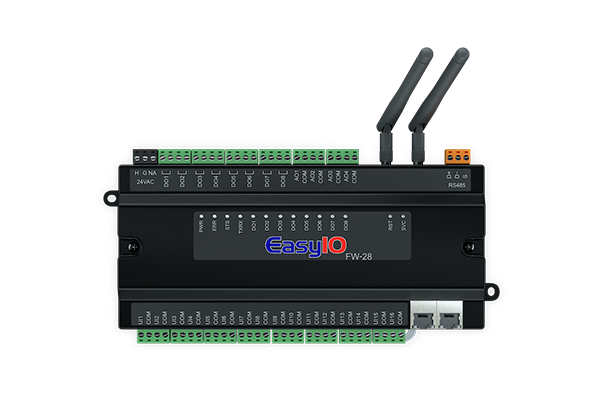

An Industrial electronic module labeled EasyIO, featuring multiple connection ports and two antennas

Features and Characteristics

BACnet, Modbus, TCOM and Sox protocol
BACnet MSTP Client and BACnet IP Client up to 5 devices
BACNet MS/TP server
EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series

16x UI
8x DO (with LED indicator)
SQL Lite up to 6,000 records
4x AO

Access here your technical documentation

FW-28 Specifications

Explore the specifications.

View

Technical Files

Unlock the technical files.

View
