EasyIO FD-20i Input Modbus/Bacnet Module

20-POINT IO EXPANSION MODULE

The FD-20i provides input point expansion capacity for all FS, FG+ and FW series controllers.

48 Mhz ARM Cortex-A0 processor for the I/O
Supports BACnet MSTP or Modbus RTU

EasyIO FD-20i Input Modbus/Bacnet Module

Product overview

The FD20i has 20 input points, supports BACnet MSTP or Modbus RTU as a selectable function and is equipped with a RS485 port. The inputs include 10 Digital Inputs (DI) and 10 Universal Inputs (UI) supporting resistance based (10K or 20K) or digital dry contact.

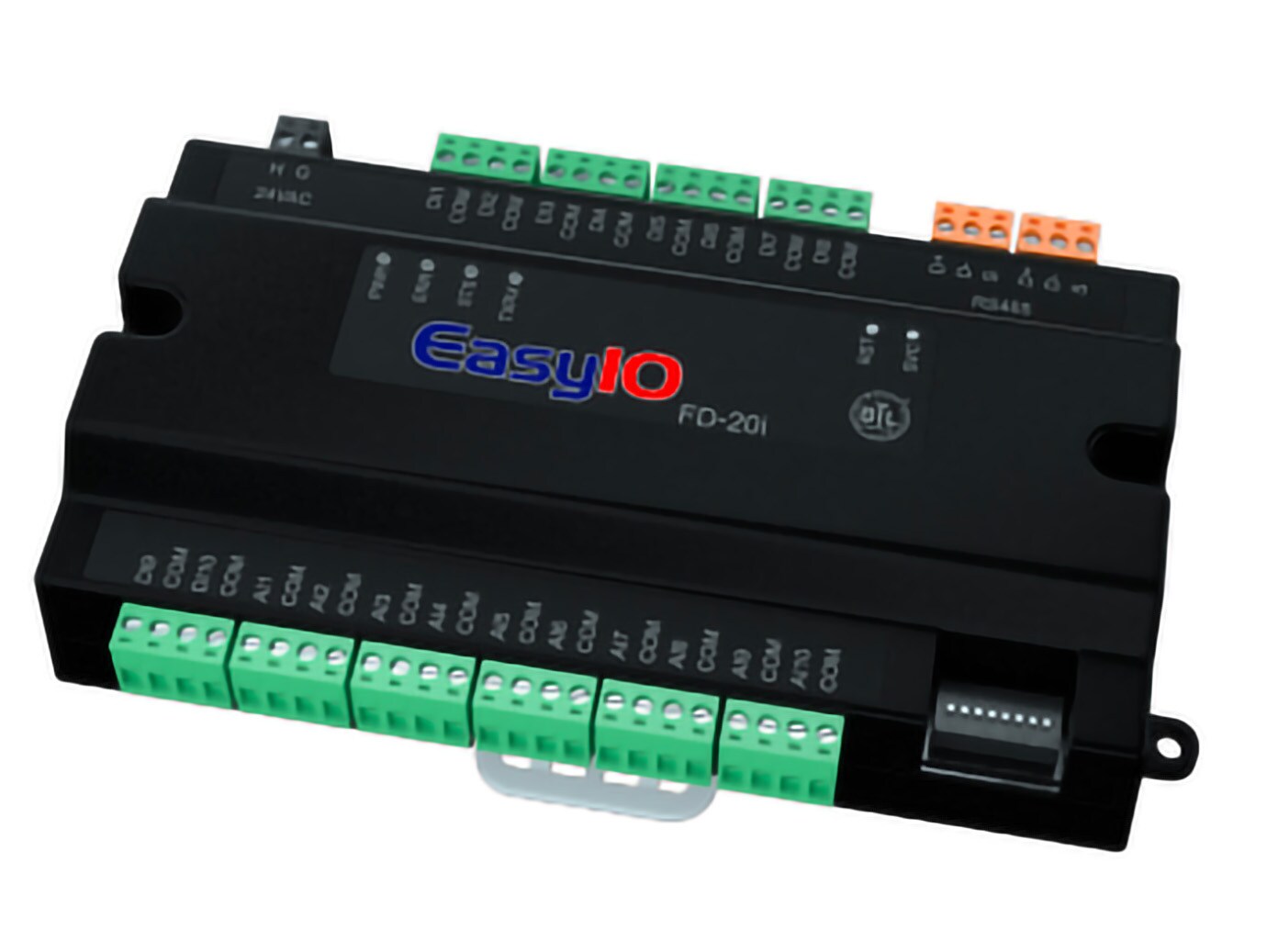

An Industrial electronic module, labeled EasyIO with multiple pin connectors

Features and Characteristics

BACnet MSTP Server	2 x RS485
Modbus RTU Slave	24V AC/DC Power
48 Mhz ARM Cortex-A0 processor for the I/O	10x UI
32KB RAM	10x DI
256KB Flash Memory

Access here your technical documentation

FD-20i Specifications

Explore the specifications.

View

Technical Files

Unlock the technical files.

View
